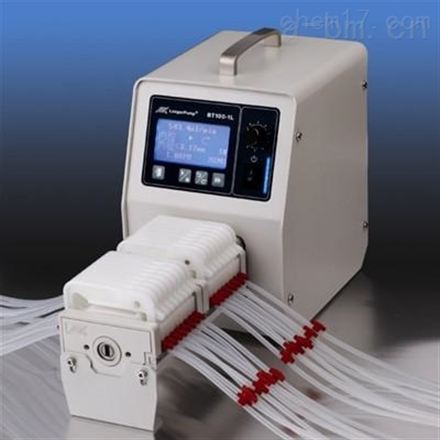

Lange BT100-1L Multi-Channel Digital Display Precision Peristaltic Pump, suitable for multi-pumphead series connection, especially when paired with DG series pumpheads, enabling multi-channel, low-flow liquid transfer. The BT100-1L driver delivers high torque output, providing a flow range of 0.002-500 (ml/min). Features a large dot-matrix LCD screen displaying operation menus and parameter settings. Flow rate and rotation speed are displayed simultaneously on the same screen for a clean, intuitive interface with excellent user-friendliness.
Lange BT100-1L Multi-Channel Digital Display Precision Peristaltic Pump
Rotation Speed Range: 1.0–100.0 rpm, reversible
Speed Adjustment Resolution: 0.1 rpm
Control Method: Rotary knob combined with buttons, supports external signal control and communication control
Display Method: LCD simultaneously shows flow rate and speed
Flow Calibration: Automatically calibrates flow by inputting actual flow values obtained at set flow rates
External Control Functions: Start/stop control, direction control, speed control (selectable: 4–20mA, 0–5V, 0–10V)
Communication Interface: RS485
Power-Off Memory: Resumes operation from last state after power restoration
Full-Speed Function: One-button full-speed operation for filling, emptying, etc.
Dimensions (L×W×H): 202×160×239 (mm)
Power Supply: AC 110V±10%/50W or AC 220V±10%/50W (selectable)
Operating Temperature: 0°C–40°C
Operating Relative Humidity: <80%
Protection Rating: IP31
Weight: 5.3kg
